Overview

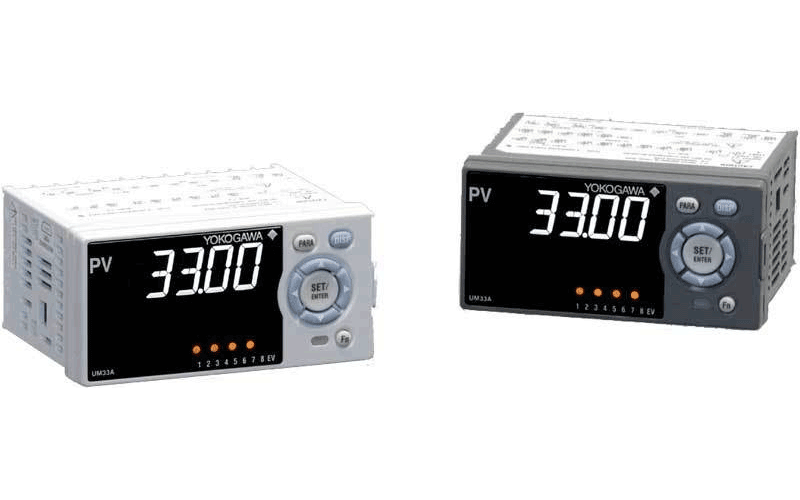

The UM33A is a digital indicator with alarms provides up to 9 alarms outputs and input correction function (PV bias, Polygonal line approximation, polygonal line bias). Also, 24 VDC sensor power supply is available as an option.
Advanced Function
- PV bias, polygonal line approximatin, and polygonal line bias
- 24 VDC sensor power supply available
Simplicity
- Easy-to-read, 14-segment large color LCD display
- Scrolling text feature for parameters
- Navigation guide & navigation keys
- Programmable funciton keys
- User settable default values
- Multiple language support (English, Spanish, French, German)
- Compact design of 65-mm depth
Networking
- RS-485 (Modbus/RTU, peer to peer, coordinated, PC-Link, CC-Link)
- RS-485 (Modbus/RTU data monitoring function, Modbus/RTU master function) →Click Here
Reliability
- 3 year warranty*1
- RoHS/WEEE
- NEMA4*2/IP66 front panel
Application Software
- LL50A parameters setting software with the ladder program building function (sold seperately)
*1: The 3 year warranty extendes 36 months
*2: Hose-down test only
